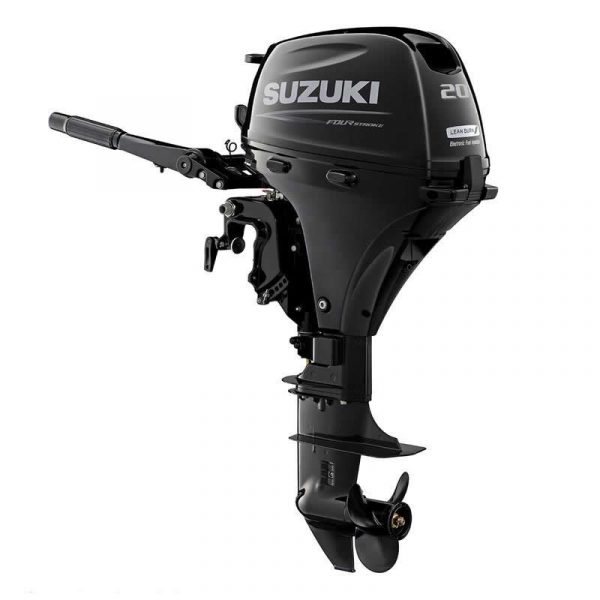

Suzuki 20 HP DF20ATHL5 Outboard Motor
2.500,00 €
SPECS
| MODEL | DF20ATHL5 |
|---|---|
| WEIGHT | 123.0 lb |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 20hp |
| SHAFT LENGTH | 20″ (Long) |
| STEERING | Tiller |
| STARTING | Electric |
| TRIM & TILT | Power Tilt |
| FUEL DELIVERY | EFI |
| FUEL TANK | External |
| CYLINDER(S) | 2 |
| DISPLACEMENT | 327 cc (20.0 cubic inches) |
| BORE AND STROKE | 60.4 x 57 mm (2.38 x 2.24 inches) |
| FULL THROTTLE RPM RANGE | 5000-6000 RPM |
| IGNITION SYSTEM | Digital CDI |
| INDUCTION SCAVENGING | SOHC |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 33.8 fl oz. (1000 mL) |
| LUBRICATION | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| ALTERNATOR | 12V 145W 10A |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 2.08:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (front-mounted lever) |
| PROPELLER | 3-Blade Aluminum 9.25″ Dia x 9″ Pitch |
The 20 HP Suzuki outboard model # 20 HP DF20ATHL5 comes with every feature you could want. Equipped with a 20 inch shaft this outboard has electric push button start and with tiller steering and power tilt. Perfect for large or heavy jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. The Suzuki 20hp outboard engine is a great example of Suzuki’s excellence in engineering and they back that up with a 5 year factory warranty. We are a trusted Suzuki Outboard Motor authorized Dealer.
Pricing includes:
- Free Shipping (*excludes AK & HI)
- 3.1 gal. Fuel Tank
- Fuel Line with Primer Bulb & Quick Connect Fuel Fittings
- 3 Blade Aluminum Propeller
Residential Delivery and Lift Gate Service are included with the Free Delivery Offer.
Additional services from the freight carrier, (i.e. island delivery, airport delivery, ferry required for delivery) Will incur a charge from the freight carrier that will not be included with the free freight offer.
↓ Outboard Setup Manual (Includes Tiller Handle and Remote Style Outboards)
↓ DF20 Owner’s Manual
↓ Suzuki Outboard Limited Warranty
FEATURES
- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Electric Start + 12V Alternator System
- Thru-Cowling Manual Back-Up Starting
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Shallow Water Drive
- 5 Trim Positions w/Tilt Lock Pin
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 3-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki’s Lean Burn Control System
- Suzuki 5-Year Warranty
