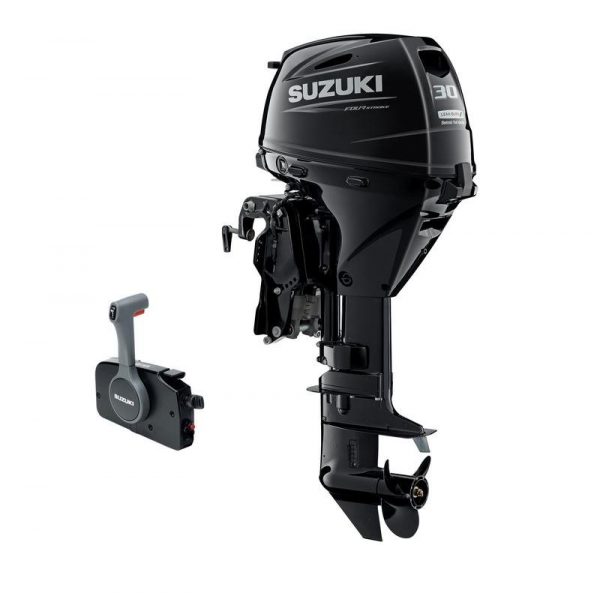

Suzuki 30 HP DF30ATL5 Outboard Motor
3.000,00 €
SPECS
| MODEL | DF30ATL5 |
|---|---|
| WEIGHT | 158.0 lb |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 30hp |
| SHAFT LENGTH | 20″ (Long) |
| STEERING | Remote |
| STARTING | Electric |
| TRIM & TILT | Power Trim & Tilt |
| FUEL DELIVERY | EFI |
| FUEL TANK | External |
| CYLINDER(S) | 3 |
| DISPLACEMENT | 29.8 (489) |
| BORE AND STROKE | 2.80 x 2.68 () |
| FULL THROTTLE RPM RANGE | 5300 – 6300 |
| IGNITION SYSTEM | Digital CDI |
| INDUCTION SCAVENGING | SOHC |
| VALVES PER CYLINDER | 4 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | Yes |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 1.6 (1.5) |
| LUBRICATION | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| ALTERNATOR | Electric 12V 14A |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 2.09:1 |
| GEAR SHIFT | Forward-Neutral-Reverse |
| PROPELLER | 3 x 10.25 x 12 |
Modern, clean environmental design make the new Suzuki 30 HP outboard motor, model DF30ATL5, the most advanced portable outboard on the market today. This is the world’s first portable 30 hp outboard motor designed for fuel efficiency and clean power with a Battery-Less Electronic Fuel Injection engine. The 30 HP Outboard DF30ATL5 has a 20-inch long shaft, electric start with back up pull rope, power trim and tilt, and remote throttle and shift control. The smooth running “Next Generation” four stroke outboard delivers a fast start, fast acceleration, and superior performance with amazing fuel economy. This outboard now comes with a Suzuki 5 Year warranty!
Pricing includes:
- Free Shipping (*excludes AK & HI)
- Suzuki Side Mount Control Box
- 16′ Wiring Harness
- 6.6 gal. Fuel Tank
- Fuel Line with Primer Bulb & Quick Connect Fuel Fittings
- 3 Blade Aluminum Propeller
- Steering Drag Link Assembly
- Residential Delivery and Lift Gate Service
This engine does not come with a shift or throttle cable. Cables are available in 1 ft. increments to match your particular installation. Cables are available for purchase on our website at this link.
Additional services from the freight carrier, (i.e. island delivery, airport delivery, ferry required for delivery) Will incur a charge from the freight carrier that will not be included with the free freight offer.
↓ Outboard Setup Manual (Includes Tiller Handle and Remote Style Outboards)
↓ DF30 Owner’s Manual
↓ Suzuki Outboard Limited Warranty
FEATURES
- Battery-Less Electronic Fuel Injection
- Easy Start – Recoil Starter
- Lean Burn Control
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System
- Suzuki 5 Year Warranty
